DB9M TO IDC10 SERIAL (DTK) PORT


Order DB9M TO IDC10 SERIAL (DTK) PORT
Example: Usage on Intel Desktop Board D845PT Many Intel Boards use our Part 07120 so make sure you get the Correct Cable.
This version known as the DTK.
Version uses the following wiring.


DB-9	IDC-10
Pin 1 	Pin 1
Pin 2	Pin 3
Pin 3 	Pin 5
Pin 4	Pin 7
Pin 5 	Pin 9
Pin 6	Pin 2
Pin 7 	Pin 4
Pin 8	Pin 6
Pin 9 	Pin 8

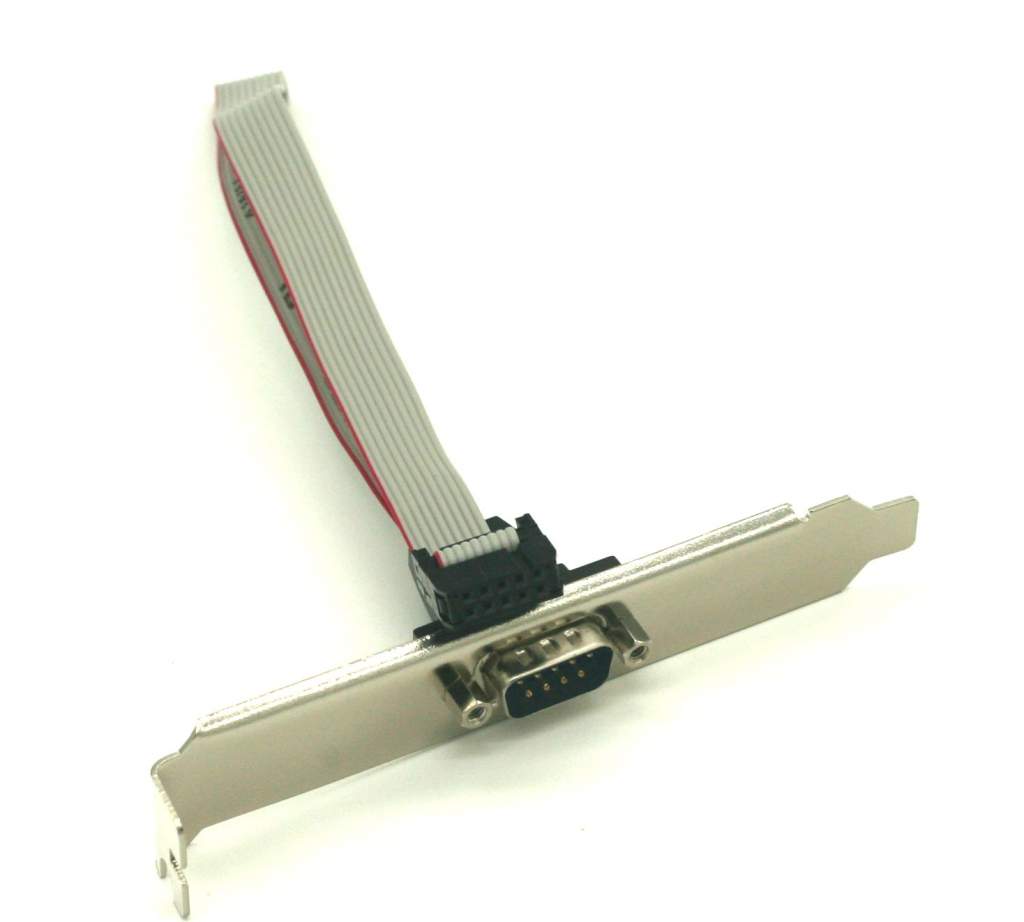

A 12" Ribbon cable with one end db-9 Male and the other IDC 10 pin Female. These small cables plug into motherboards and some I/O Cards.
Compatible with CablesToGo 09480.
Called usually CrossOver Wiring Method.

Price for Item# [07121] :$ 1.65



UPC Code: 820799071216
