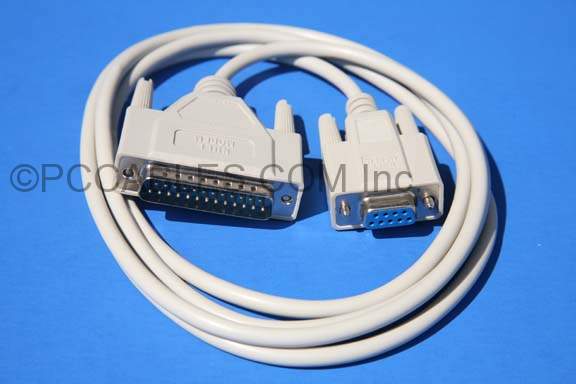

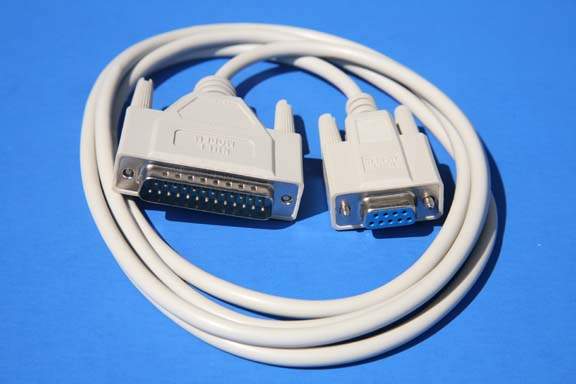

6FT NULL MODEM CABLE DB9 F TO DB25 M

OrderQtyDescription
6FT NULL MODEM Cable DB9-F to DB25-M
6FT NULL MODEM Cable DB9-F to DB25-M

Serial (RS232) Null modem cable (DB9-DB25)

Use this cable between two DTE devices.
DB9 pin D-SUB female
DB9 pin D-SUB female
DB25 pin D-SUB male
DB25 pin D-SUB male
DB9 DB25
Receive Data
2
2
Transmit Data
Transmit Data
3
3
Receive Data
Data Terminal Ready
4
6+8
Data Set Ready + Carrier Detect
System Ground
5
7
System Ground
Data Set Ready + Carrier Detect
6+1
20
Data Terminal Ready
Request to Send
7
5
Clear to Send
Clear to Send
8
4
Request to Send
