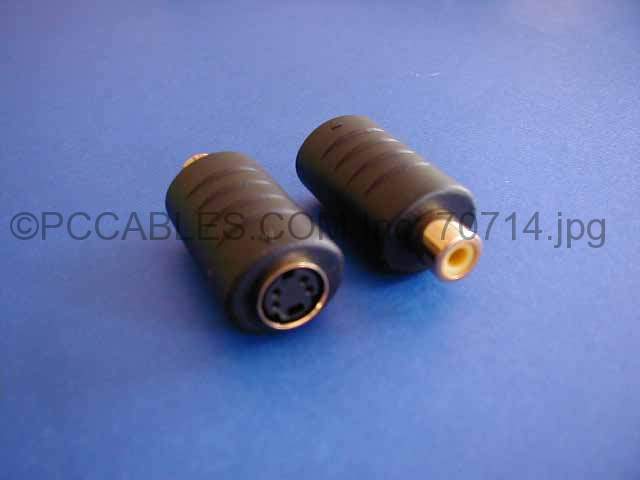

SVHS SVIDEO ADAPTER 4PIN MINI F To RCA-F


Order SVHS SVIDEO ADAPTER 4PIN MINI F To RCA-F
Combines the Luminance and Chrominance.
SVIDEO Mini Din4 Female to RCA Female.
Called a Base Band Converter.
This bidirectional Adapter will convert in either Direction.
RCA->SVIDEO
SVIDEO->RCA
Minor video loss can be expected in the SVIDEO->RCA Conversion.


Svideo Wiring to Dual RCA Wiring.
4 PIN MINI-DIN FEMALE 					RCA-FEMALE
Name            Description
GND             Ground (Y)                              Gold Shield
GND             Ground (C)				Gold Shield
Y               Intensity (Luminance)			Gold Hole
C               Color (Chrominance)			Gold Hole
Please Note this uses a Cap-Res combination to accurately combine, The Chrominance and Luminance.
Many Competitors do not use this and the picture becomes unstable

Price for Item# [70714] :$ 5.50



UPC Code: 820799707146
