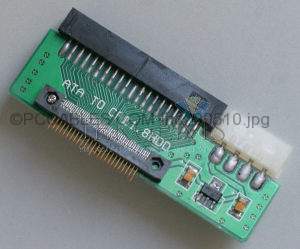

CF HARD DRIVE 1.8 INCH TO 40 PIN ATA IDE ADAPTER

OrderQtyDescription
CF HARD DRIVE 1.8 INCH to 40 PIN ATA IDE ADAPTER
CF HARD DRIVE 1.8 INCH to 40 PIN ATA IDE ADAPTER

Converter for 1.8-in Hard Drive CF II 1.8 HDD


This Uses CF Type Interface with Pins.
If you drive does not have this interface obviously this is not going to work.

Side 1: CF Interface to Drive
Side 2: IDE 40 Pin with Power

PLEASE NOTE: This is a Very Fragile Unit and should be used delicately.
As the Surface mount CF Adapter can be easily broken from the Surface.
Anyone using this more than once should Hot-Glue the Connector to the Board.
No Refunds or Credit Will be given for anyone breaking this connectors solder joints.

03-28-2011 Update: We have redesigned the cf Pin-Connector to make it more Sturdy on the Board.
06-01-2016 Update: Added Activity LED's to Board.

Some Example Drivers.
I believe these all to be 5mm Drive
Example Hard Drive Models:
Toshiba 20GB MK2004GAL
Toshiba 20GB MK2006GAL
Toshiba 30GB MK3006GAL
Toshiba 40GB MK4006GAH
Toshiba 60GB MK6006GAH
Toshiba 80GB MK8009GAH
Hitachi 30gb Travelstar C4K60
Example Devices:
Apple IPOD
Sony Vaio VGN-TX Series
