DB9M TO IDC10 SERIAL AT-EVEREX PORT 30 INCH

OrderQtyDescription
DB9M TO IDC10 SERIAL (AT-EVEREX) PORT 30 Inch
DB9M TO IDC10 SERIAL (AT-EVEREX) PORT 30 Inch

Extra Long 30 Inch Version
This version known as the AT or EVEREX or EVEREST.
Version uses the following wiring.
WARNING: IDC Connectors are Numbered:
1,3,5,7,9 Top Row
2,4,6,8,10 Bottom Row


DB-9	IDC-10
Pin 1 	Pin 1
Pin 2	Pin 2
Pin 3 	Pin 3
Pin 4	Pin 4
Pin 5 	Pin 5
Pin 6	Pin 6
Pin 7 	Pin 7
Pin 8	Pin 8
Pin 9 	Pin 9

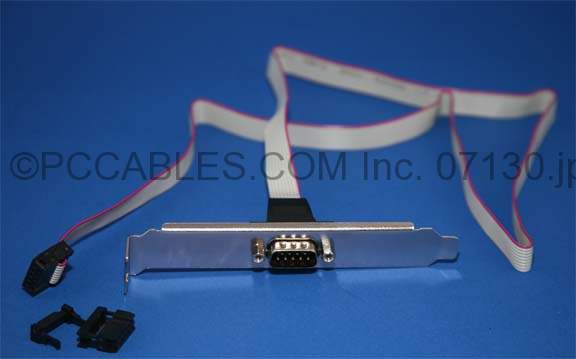

A 30" Ribbon cable with one end db-9 Male and the other IDC 10 pin Female.
These small cables plug into motherboards and some I/O Cards.
