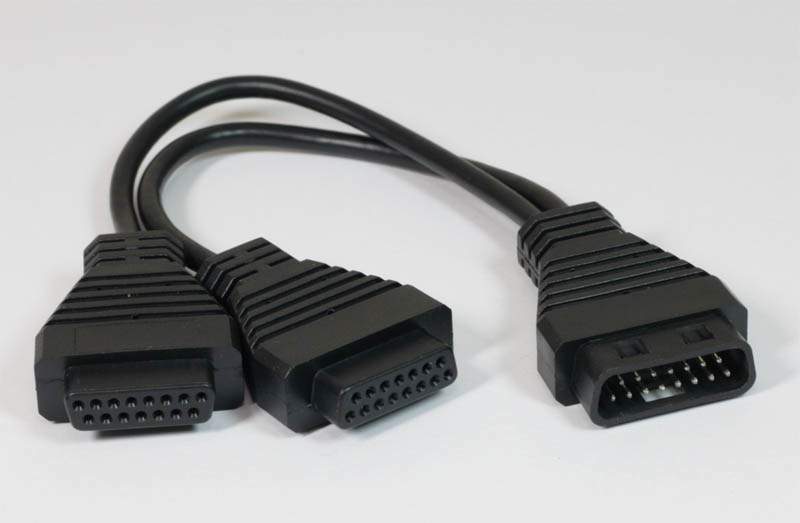

JOYSTICK DB15 SPLITTER Y

OrderQtyDescription
JOYSTICK DB15 SPLITTER Y
JOYSTICK DB15 SPLITTER Y

Joystick cable splitting allowing the port to have to joystick devices hooked to it these are usually specified joystick [A] and [B].
PC Joy A Joy B
+5 VDC11-
Button 122
Joystick 1 - X33
Ground444
Ground555
Joystick 1 - Y66
Button 277
+5 VDC88
+5 VDC991
Button 410102
Joystick 2 - X11113
Ground1212
Joystick 2 - Y13136
Button 314147
+5 VDC15158
Plugs into GAMEPORT Card

Joystick - A Port

Joystick - B Port
