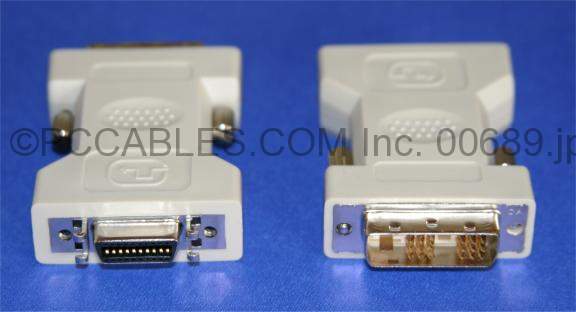

MDR ADAPTER DVI-D-M TO DFP MDR20-F

OrderQtyDescription
MDR Adapter DVI-D-M to DFP MDR20-F
MDR Adapter DVI-D-M to DFP MDR20-F

Adapter to Convert DVI-D to DFP-F
Wired to Molex Specification
DVI-D Connector Male

Pin

Function

Pin

Function

1

T.M.D.S. Data2-

13

T.M.D.S. Data3+

2

T.M.D.S. Data2+

14

+5V Power

3

T.M.D.S. Data2/4 Shield

15

Ground
(for +5V)

4

T.M.D.S. Data4-

16

Hot Plug Detect

5

T.M.D.S. Data4+

17

T.M.D.S. Data0-

6

DDC Clock

18

T.M.D.S. Data0+

7

DDC Data

19

T.M.D.S. Data0/5 Shield

8

Not Connected

20

T.M.D.S. Data5-

9

T.M.D.S. Data1-

21

T.M.D.S. Data5+

10

T.M.D.S. Data1+

22

T.M.D.S. Clock Shield

11

T.M.D.S Data1/3 Shield

23

T.M.D.S. Clock+

12

T.M.D.S. Data3-

24

T.M.D.S. Clock-

Legend

DDC = Display Data Channel

T.M.D.S. = Transition Minimized Differential Signal
