PS 2 MOUSE PORT TO MB 1X6 OR 1X5 PIN

OrderQtyDescription
PS/2 MOUSE PORT TO MB 1x6 or 1x5 pin
PS/2 MOUSE PORT TO MB 1x6 or 1x5 pin

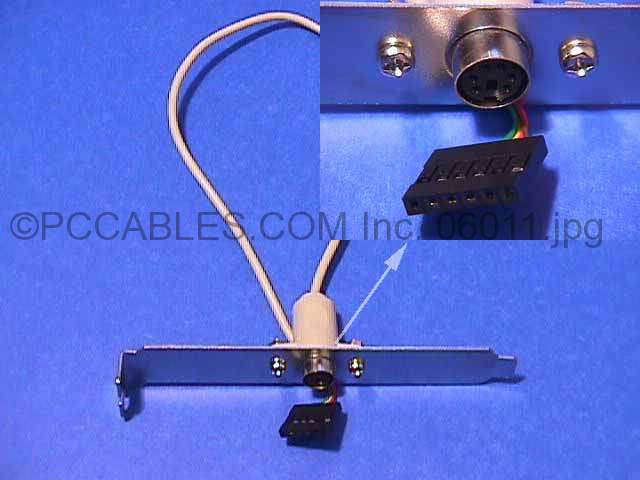

Cable used to allow usage of a PS/2 mouse.
On the special 6 pin connector on main board.
Also use on 5 Pin connector on main board.
(Let remaining connector hang off)
This connector is single row with 6 pins.
Commonly used on :
Shuttle Mother Boards.
6-Wire Layout
PIN		SIGNAL		COLOR
Pin 1		Mouse Data	Brown
Pin 2		Reserved	Open
Pin 3		Ground		Red
Pin 4		+5V		Yellow
Pin 5		Mouse Clock	Green
Pin 6		Reserved	Open
