SOUND PORT DB15F PORT TO IDC26 SLOT COVER

OrderQtyDescription

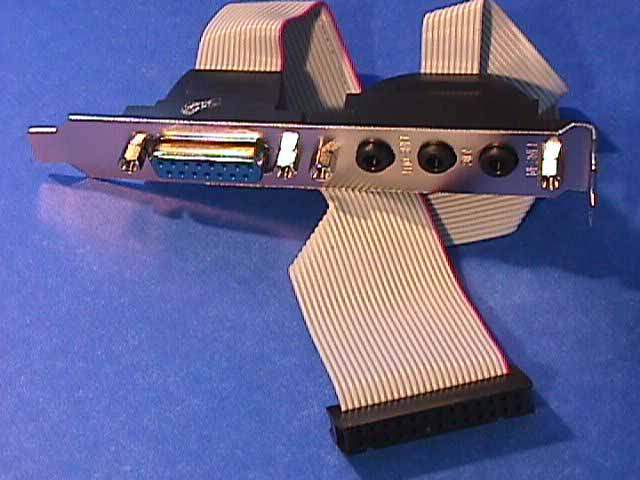

SOUND PORT DB15F PORT To IDC26 Slot Cover
SOUND PORT DB15F PORT To IDC26 Slot Cover

Combination Sound Ports and Joystick Port on a Bracket
Both go down to Motherboard which has a Combined header of both of these ports on one IDC Connector
This has a 26 Pin IDC Connector on It with 1 Pin Blocked
Drawing of Pin Outs
