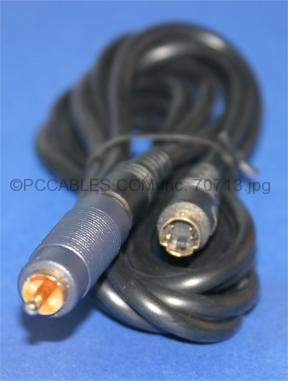

SVHS SVIDEO 4PIN MINI M TO RCA-M 6FT CABLE
SVIDEO Mini-Din-5 Male to RCA Male.Combines the Luminance and Chrominance.
SVIDEO Mini Din4 Male to RCA Cable.
Used to for video devices that only have a RCA Input.
Video will be stepped down to standard RCA.
Circuit is used to combine Y+C Signals.
SVIDEO Mini-Din-5 Male to RCA Male.
Svideo Wiring to Dual RCA Wiring. 4 PIN MINI-DIN MALE RCA Name Description GND Ground (Y) Gold Sheild GND Ground (C) Gold Shield Y Intensity (Luminance) Gold Pin C Color (Chrominance) Gold Pin
