USB PORT SINGLE to MAINBOARD PORT Universal (14in)
USB PORT SINGLE to MAINBOARD PORT Universal (14in)

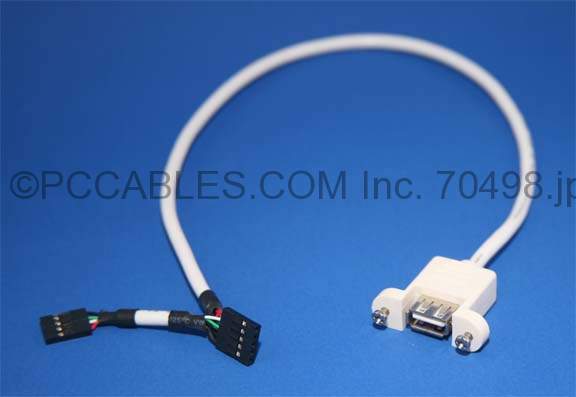

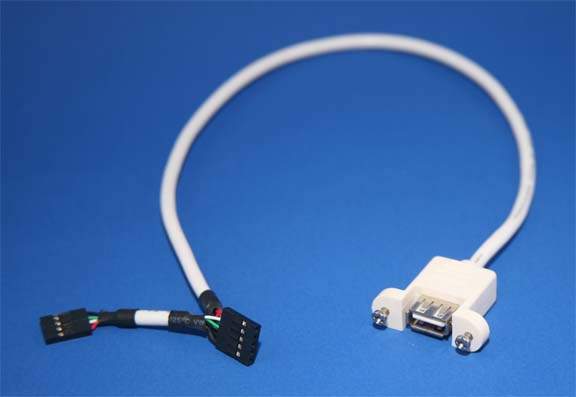

Single Port USB (Universal Serial Bus) 14 Inch

Great for Panel Mounting in Custom Applications.
Allowing External connection of 1 USB 2.0 TYPE A connectors.
One - 5 pin row connectors to connect to main board.
One - 4 pin row connectors to connect to main board.
Extra Long 14 Inch Leader.
Bracket Screw and Molded in Nut for easy panel assembly.

Each Port can be connected to only one 1x5 or 1x4
The other connector must be left free.
Otherwise you are shorting out a USB Port to another Unit.
Cable Pin Out
USB Port-1
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
