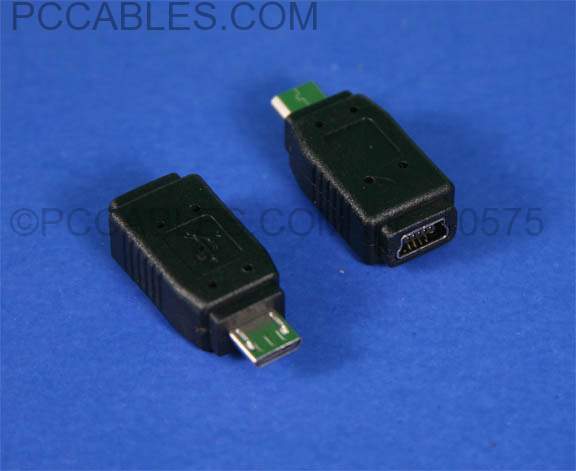

USB MINI-B FEMALE TO MICRO-B MALE ADAPTER

OrderQtyDescription
USB Mini-B Female to Micro-B Male Adapter
USB Mini-B Female to Micro-B Male Adapter

USB Mini-B Female to USB Micro-B Male Adapter.
Used to Change Mini-B to Micro-B Connector.
Sends both Data and Power Signals.
USB 1.x/2.0 Mini/Micro pinout
Pin Name Cable color Description
1 VBUS Red +5 V
2 Dāˆ’ White Data āˆ’
3 D+ Green Data +
4 ID None Permits distinction of host connection from slave connection
ā€¢ host: connected to Signal ground
ā€¢ slave: not connected
5 GND Black Signal ground
