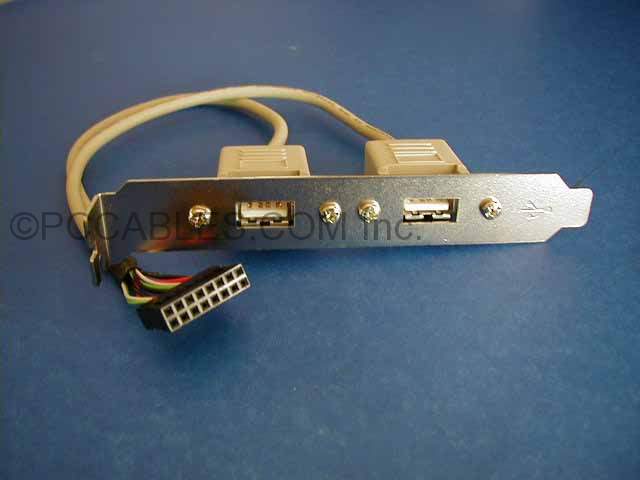

USB PORT DUAL to MAINBOARD PORT 2x8

Part No70520
Stock UNAVAILABLE
Price 1 to 9 $4.25
Price 10 to 99 $3.50
Price 100 + $2.50
UPC Code820799705203
USB PORT DUAL to MAINBOARD PORT 2x8
USB to Main Board 2x8 Layout
PINOUT:
Pin			Pin
1 VCC(Red)		9 Ground(Black)
2 Data-(White)		10 N/C
3 Data+(Green)		11 N/C
4 Ground(Black)		12 N/C
5 VCC(Red)		13 Ground(Black)
6 Data-(White)		14 N/C
7 Data+(Green)		15 N/C
8 Ground(Black)		16 N/C
Please Note that the 1x8 Layout Should be used for some 2x8 Main Boards
Watch out for the +5 Volts VCC(Red)
