16In DB25F Parallel Port Expansion to 26 Pin Motherboard Header IDC26 Cable

07124

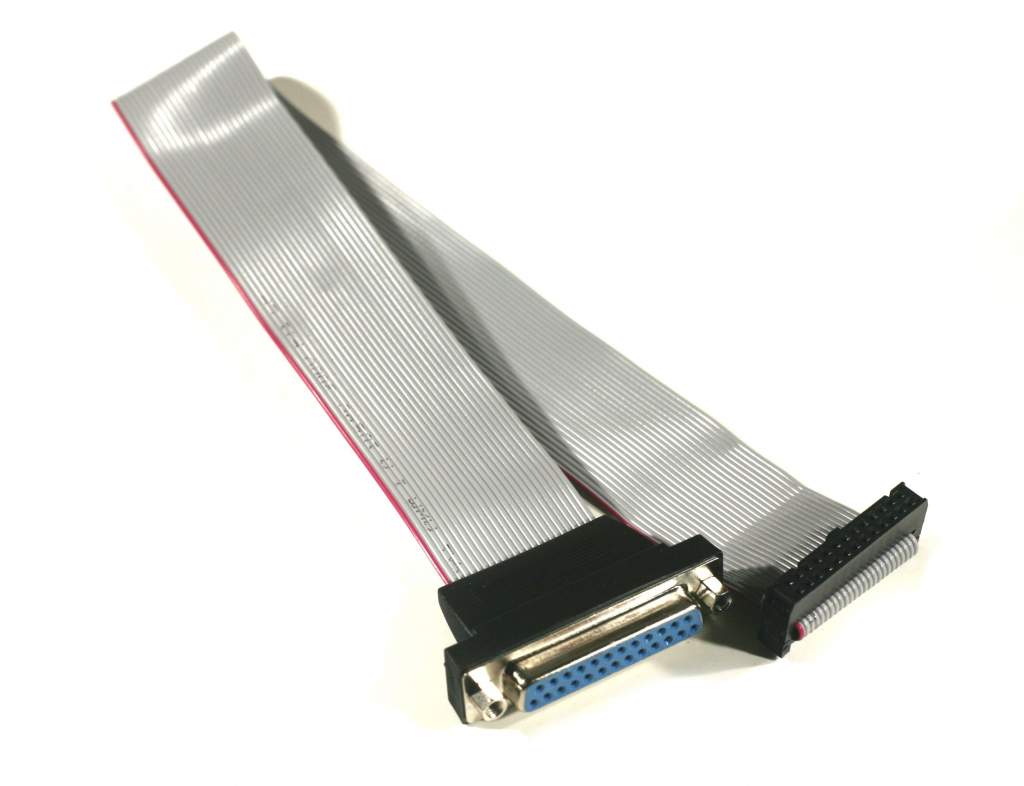

A 16 Inch Ribbon cable with one end db-25 Female and the other IDC 26 pin Female.
Pin Configuration for 25-Pin Parallel Port Connector
25-PIN PARALLEL PORT CONNECTOR
(DB-25 female connector)
26-PIN HEADER IDC
on motherboard
1 -Strobe 1 -LP_STB
2 +Data Bit 0 3 LP_D0
3 +Data Bit 1 5 LP_D1
4 +Data Bit 2 7 LP_D2
5 +Data Bit 3 9 LP_D3
6 +Data Bit 4 11 LP_D4
7 +Data Bit 5 13 LP_D5
8 +Data Bit 6 15 LP_D6
9 +Data Bit 7 17 LP_D7
10 -Acknowledge 19 -LP_ACK
11 +Busy 21 LP_BUSY
12 +Paper End 23 LP_PE
13 +Select 25 LP-SLCT
14 -Auto Feed 2 -LP_AFD
15 -Error 4 -LP_ERR
16 -Initialize Printer 6 -LP_INIT
17 -Select Input 8 -LP_SLIN
18 -Data Bit 0 Return (GND) 10 -GND
19 -Data Bit 1 Return (GND) 12 -GND
20 -Data Bit 2 Return (GND) 14 -GND
21 -Data Bit 3 Return (GND) 16 -GND
22 -Data Bit 4 Return (GND) 18 -GND
23 -Data Bit 5 Return (GND) 20 -GND
24 -Data Bit 6 Return (GND) 22 -GND
25 -Data Bit 7 Return (GND) 24 -GND
26 no connection
Part # PCC-07124
$2.85
Quantity
In Stock

QTY DISCOUNT PRICING
1-910-99100-999
$2.85$2.75$2.30
1FT-GRAY
1FT-GRAY
1FT 4IN-GRAY
UPC:820799071247
Great Cable Purchased for a Great Price from PCCABLES.COM INC.
