Description

1 Meter 39 inch 3 feet 3.0 SATA III 6Gbps Hard Drive or SSD Data Cable 1M

Part No #01617
Stock 540 - IN STOCK
Price 1-9 $2.25
Price 10-99 $2.15
Price 100+ $1.95
Quantity
1 Meter 39 inch 3 feet 3.0 SATA III 6Gbps Hard Drive or SSD Data Cable 1M

SERIAL ATA CABLE 40 Inch Data Cable

40 inch Cables with 7 Pin Connectors.

Features:


  • 150/300/600 MByte/s
  • SATA-1,SATA-2,SATA-3
  • Hot-plugging capability
  • Two power saving modes: partial and slumber Overlapping (commands)
  • Tagged command queuing
  • Seven-wire data cable.
  • Connectors measure just 8 mm wide.

    Technical Information on SATA:


  • Lower voltage signal level: The level of voltage to the Serial ATA is of differential 500 mV , and it's more suitable for PC's technical request than that of 5 Volt Parallel ATA, and it can save more power as well.
  • Pin Pitch Advantage: Serial ATA connector includes a line of 7Pin signal terminal and a line of 15Pin power terminal. These two lines of terminals can be detached to the freestanding tie-in, therefore, it not only reduces its body size but also enlarges its trans-positional space.
  • Transferring Speed Advantage: Transferring speed of 150MB/s, 300MB/s,600MB/s and Faster.

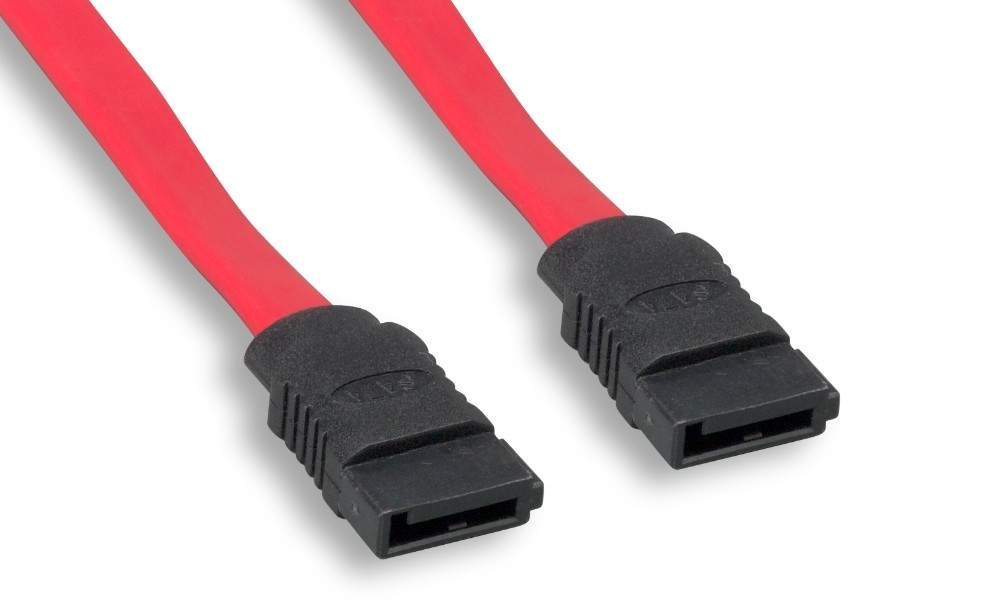

    7-PIN 180 DEGREE SERIAL ATA DEVICE CABLE
    Connect your serial ATA devices to motherboard for data transfer.
    Support transfer rate up to 6 Gbps.
    All relevant materials are complied with RoHS directive.
    Connector A : Serial ATA 7 Pin Female
    Connector B : Serial ATA 7 Pin Female
    Conductor : 26 AWG
    Cable Color : Red Color

    Additional information on Serial ATA 01617 Supplementary Image01617 Supplementary Image
