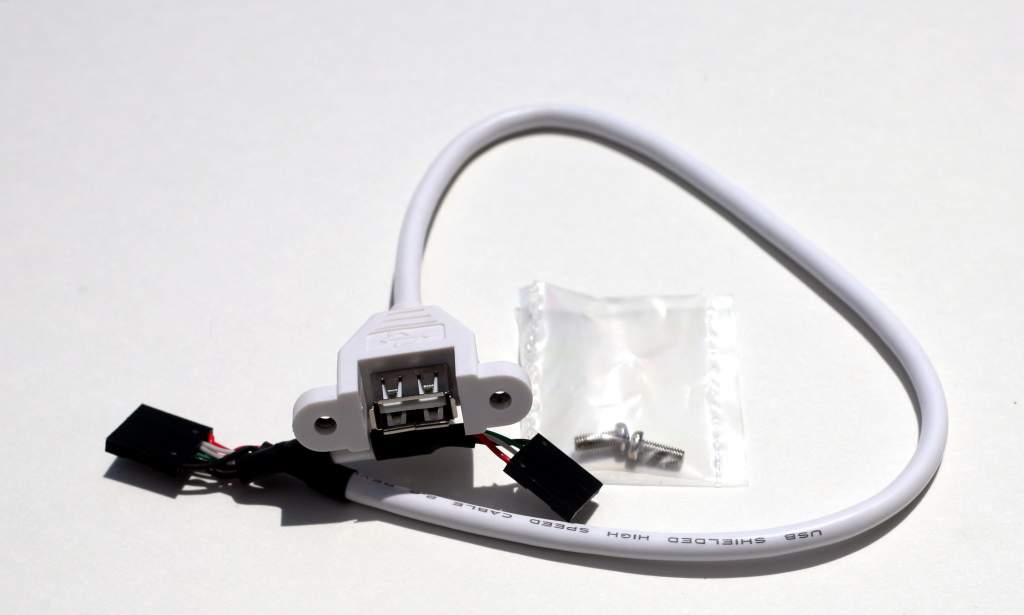

Single Port USB (Universal Serial Bus) 14 Inch

Great for Panel Mounting in Custom Applications.
Allowing External connection of 1 USB 2.0 TYPE A connectors.
One - 5 pin row connectors to connect to main board.
One - 4 pin row connectors to connect to main board.
Extra Long 14 Inch Leader.
Bracket Screw and Molded in Nut for easy panel assembly.

---

Each Port can be connected to only one 1x5 or 1x4
The other connector should be left free.

Cable Pin Out
USB Port-1
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground

Certifications:
