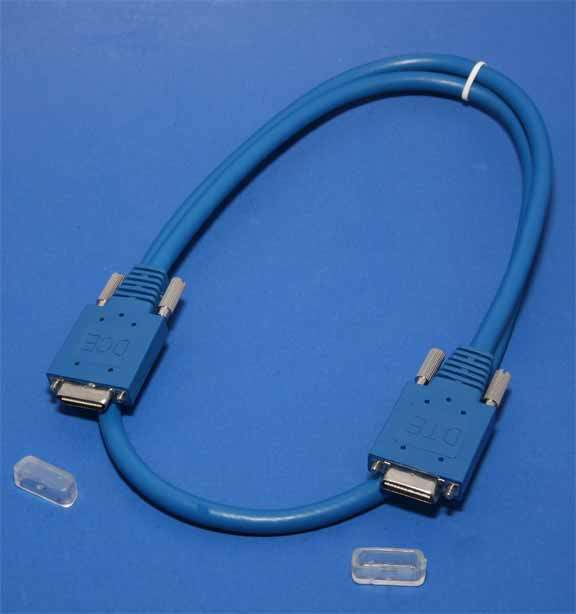

CAB-SS-2626X-3 CISCO Router Cable WIC-2T Smart Serial CN26-CN26 Crossover DTE-DCE 3FT

Part # PCC-71010
In Stock 194

3FT-BLUE (PCC-71010)
Router Cable
Primarily Used for CISCO Routers
3 Feet Long.
Metal thumb screws.
Brand New 3ft Back-to-Back Serial Cross-Over Cable
Used for Cisco 1700 (WIC-2T), 2600 (WIC-2T), 3600 (WIC-2T)
Used To Connect Two Cisco Routers Ports
Each Side is Labeled DCE and DTE

What is a Cisco 26 Pin DCE DTE Cable.

A Cisco 26-pin DCE/DTE cable is a specialized serial cable used to connect a Data Communication Equipment (DCE) device to a Data Terminal Equipment (DTE) device, such as connecting a router to another router, a modem, or a CSU/DSU (Channel Service Unit/Data Service Unit) in a Wide Area Network (WAN) environment.
The 26-pin connector is also known as a Smart Serial connector, which is a Cisco proprietary interface. The cable is typically used with Cisco routers and switches for high-speed serial WAN connections. The DCE/DTE designation in the cable's name refers to the roles that the connected devices play in the data communication process:
DCE (Data Communication Equipment) - This is typically a device that provides a clocking signal and is responsible for establishing, maintaining, and terminating the communication link. Examples include modems and CSU/DSUs.
DTE (Data Terminal Equipment) - This is typically an endpoint device that initiates and terminates the data transmission, such as a computer, router, or switch. When connecting two devices, it's essential to use the correct DCE/DTE cable to ensure proper communication between them. The cable will have different pinouts for each end, allowing the devices to communicate effectively.(Source Chat GPT4)


RoHS Certificate ROHS3 ComplianceReach ComplianceReach 233 Compliance
Technical Drawing for Part PCC-71010
