PS2 Mouse PORT to MB 1x6 or 1x5 pin

Part No #06011
StockUNAVAILABLE DISCONTINUED

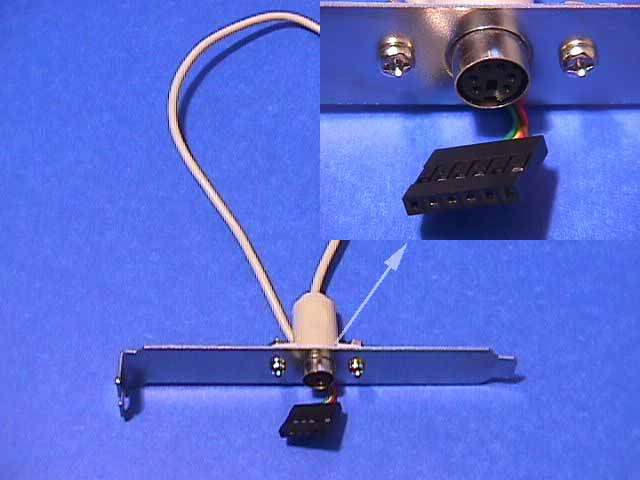

PS2 Mouse PORT to MB 1x6 or 1x5 pin
Cable used to allow usage of a PS/2 mouse.
On the special 6 pin connector on main board.
Also use on 5 Pin connector on main board.
(Let remaining connector hang off)
This connector is single row with 6 pins.
Commonly used on :
Shuttle Mother Boards.
6-Wire Layout
PIN		SIGNAL		COLOR
Pin 1		Mouse Data	Brown
Pin 2		Reserved	Open
Pin 3		Ground		Red
Pin 4		+5V		Yellow
Pin 5		Mouse Clock	Green
Pin 6		Reserved	Open
