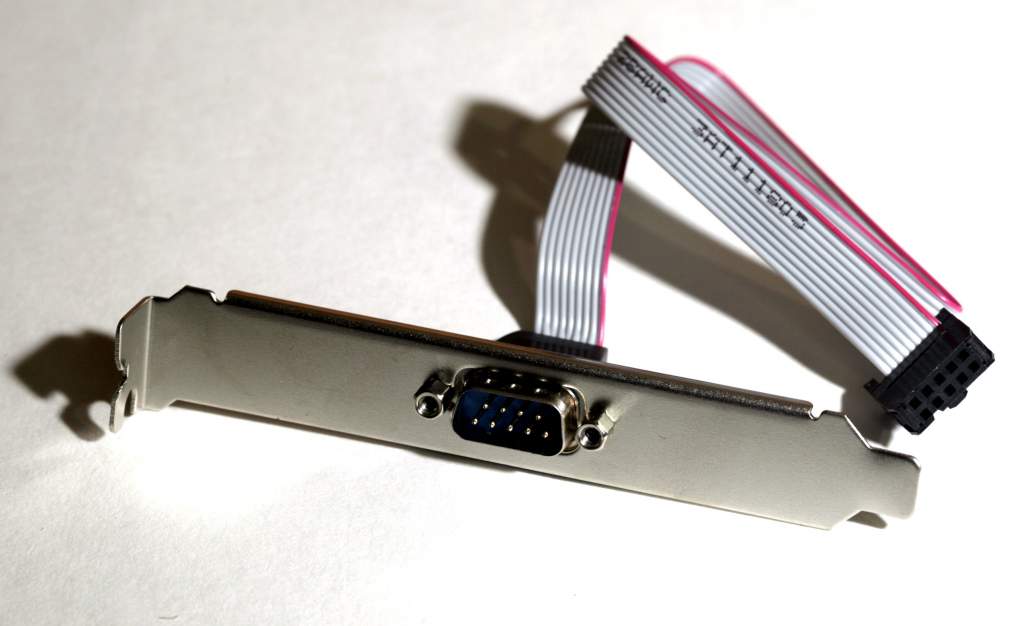

12In DB9 To IDC10 Serial Port Everex Cable Bracket Add DB9 Port AT Motherboard

07120
07120a
Part # PCC-07120
$2.65
Quantity
In Stock 8050

QTY DISCOUNT PRICING
1-910-99100-999
$2.65$2.45$2.35
6IN-GRAY (PCC-07141)
1FT-GRAY (PCC-07140)
1FT-GRAY (PCC-07122)
1FT-GRAY (PCC-07120)
2FT 6IN-GRAY (PCC-07130)
This version known as the AT or EVEREX or EVEREST.
Version uses the following wiring.
DSUB 9 PIN Female Connector
Standard 2.54mm Pitch IDC Connector.

WARNING: IDC Connectors are Numbered:
1,3,5,7,9 Top Row
2,4,6,8,10 Bottom Row
IDC 10 PIN Female Connector
DB-9	IDC-10
Pin 1 	Pin 1
Pin 2	Pin 2
Pin 3 	Pin 3
Pin 4	Pin 4
Pin 5 	Pin 5
Pin 6	Pin 6
Pin 7 	Pin 7
Pin 8	Pin 8
Pin 9 	Pin 9
Called Straight Thru Wiring Serial Port.
A 12" Ribbon cable with one end db-9 Male and the other IDC 10 pin Female. These small cables plug into motherboards and some I/O Cards.
We sell a Longer Version of this Part 07130.
We also Sell a 1U Short Bracket for This Part 07112.
The Easiest Way to tell which of these you need is to pull off the Housing as Pictured above.

Compatible Designs

CablesToGo 28300.
StarTech PNL9M16 (16 Inch).
Generic Part Numbers 000-F903-N, 000F903N, DB107-3212
