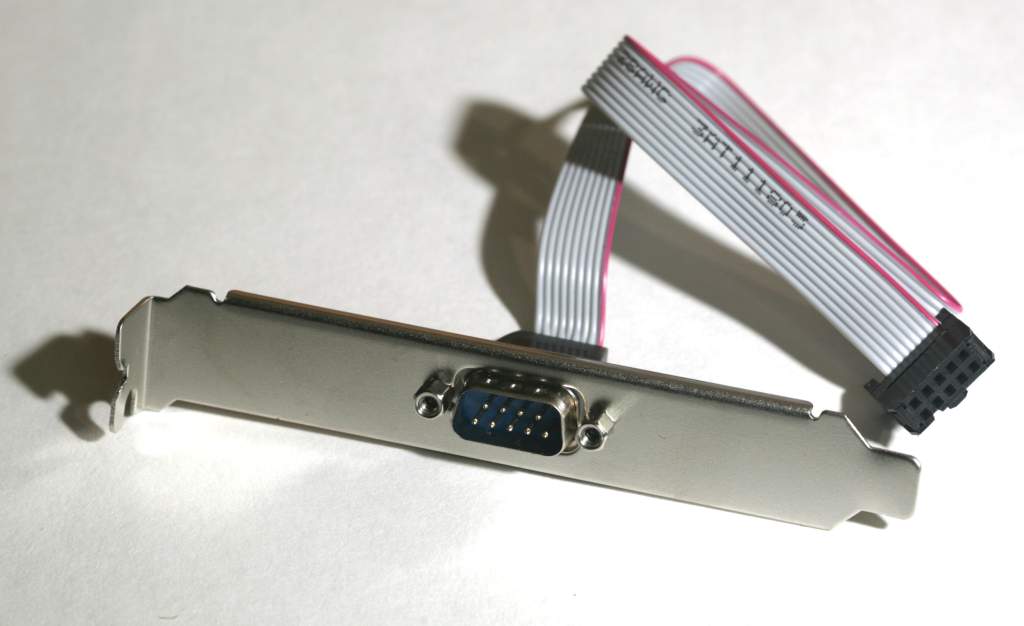

DB9-Male to IDC10 Serial Port AT-Everex Bracket 12 Inch

07140
Part # PCC-07140
$2.95
Quantity In Stock 100

QUANTITY DISCOUNT PRICING
1-910-99100-999
$2.95$2.85$2.75
6IN-GRAY
1FT-GRAY
1FT-GRAY
1FT-GRAY
2FT 6IN-GRAY

DB9 Male to IDC Connector

Bracket Included.
Use Case or Panel or Purchase Supplementary Bracket.
This version known as the AT or EVEREX or EVEREST.
Version uses the following wiring.
DB9_Male_Connector

WARNING: IDC Connectors are Numbered:
1,3,5,7,9 Top Row
2,4,6,8,10 Bottom Row
IDC10_Connector
DB-9	IDC-10
Pin 1 	Pin 1
Pin 2	Pin 2
Pin 3 	Pin 3
Pin 4	Pin 4
Pin 5 	Pin 5
Pin 6	Pin 6
Pin 7 	Pin 7
Pin 8	Pin 8
Pin 9 	Pin 9
Called Straight Thru Wiring Serial Port.

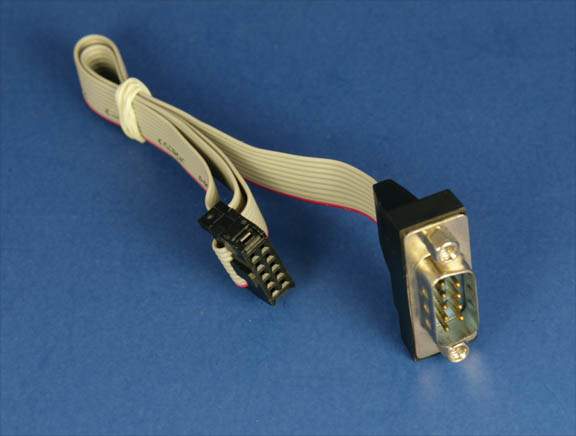

A 12" Ribbon cable with one end db-9 Male and the other IDC 10 pin Female. These small cables plug into motherboards and some I/O Cards.
We sell a Longer Version of this Part 07130.
We also Sell a 1U Short Bracket for This Part 07112.
