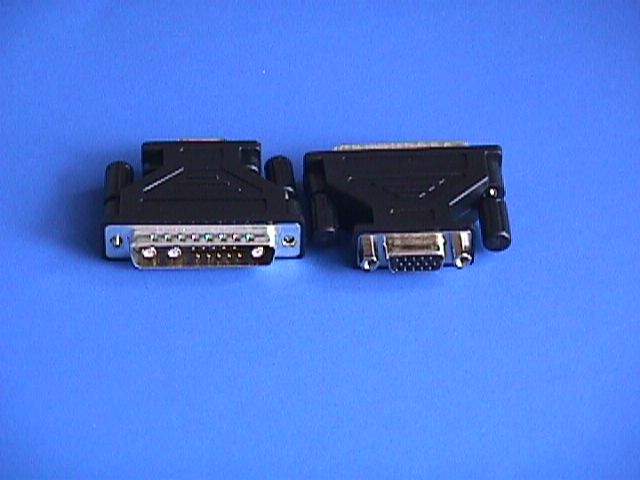

13W3-M to VGA HD15-F Adapter FIXED

00620
Sun Version
A very special adapter to change 13w3 to a High Density 15 Connector.

Adapter Wiring

HDDB15-F                  13W3-M
Pin                     Pin
1                       A1-Conductor
2                       A2-Conductor
3                       A3-Conductor
6                       A1-Ground
7                       A2-Ground
8                       A3-Ground
10                      Pin 10 in Block
13                      Pin 5 in Block
Shell                   Shell

13W3 Sun Color Signals
1152x900
61 - 89 kHz, 60 - 80Hz


Signals on SUN

Signal Type: Analog
Pin A1 - Red/Red Ground
Pin A2 - Green/Green Ground
Pin A3 - Blue/Blue Ground
Pin 1  - N/C
Pin 2  - N/C
Pin 3  - Sense 2
Pin 4  - Sense Return
Pin 5  - Composite Sync
Pin 6  - N/C
Pin 7  - N/C
Pin 8  - Sense 1
Pin 9  - Sense 0
Pin 10 - Composite Sync Return

Monitor Sense Bits Defined:
Value	Bit 2	Bit 1	Bit 0	Resolution
0	0	0	0	?
1	0	0	1	1600 x 1200 76Hz
2	0	1	0	1280 x 1024 76Hz
3	0	1	1	1152 x 900 66Hz
4	1	0	0	1152 x 900 76Hz 19"
5	1	0	1	1024 x 768 76Hz
6	1	1	0	1152 x 900 76Hz 16-17"
7	1	1	1	No monitor connected
Part # 00620
$18.50
Quantity
No Stock

QTY DISCOUNT PRICING
1-910-99100-999
$18.50$17.00$17.00
Technical Drawing for Part 00620
UPC:820799006201
