RJ45 Ethernet Loopback Tester Plug - Gigabit Network Testing

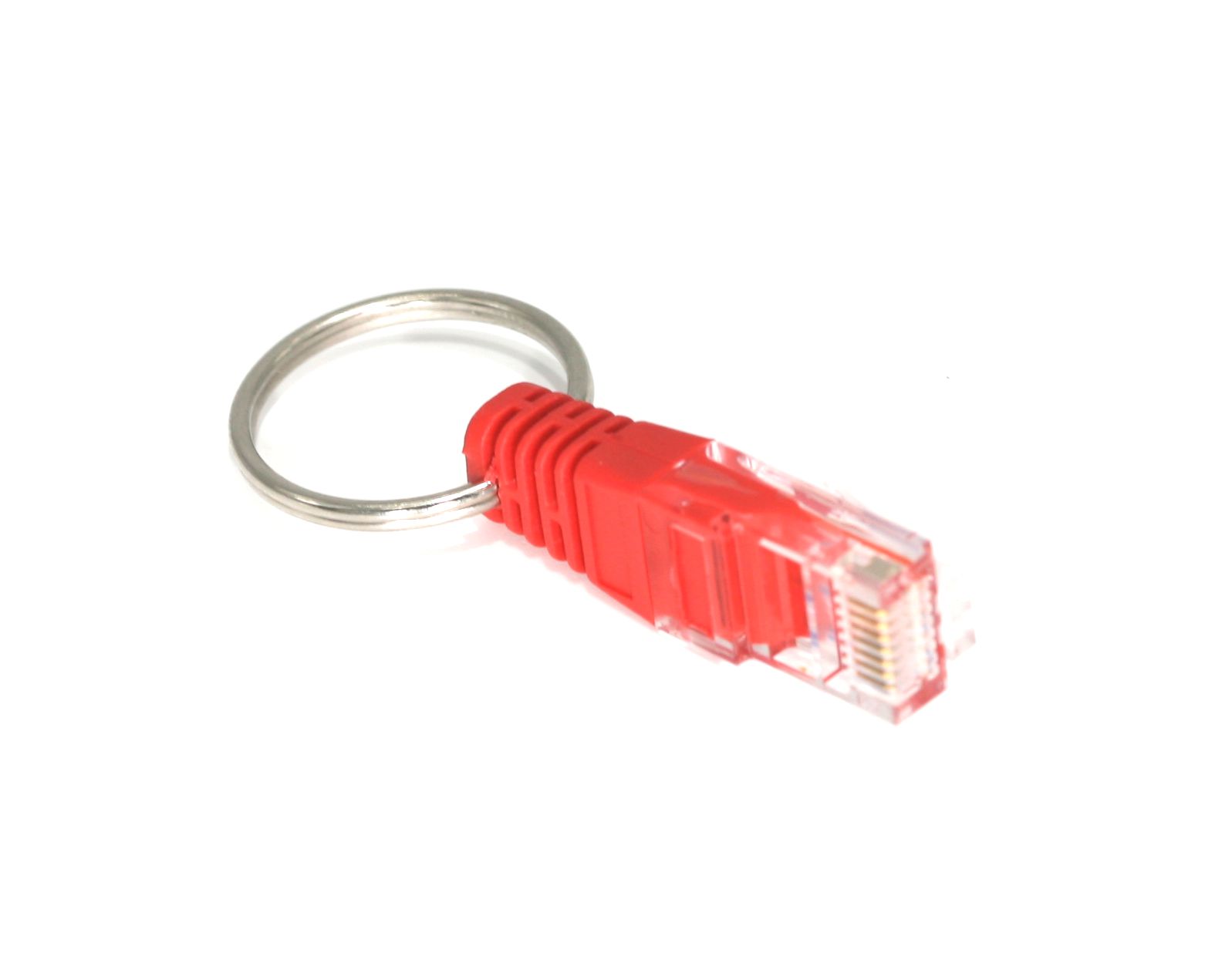

RJ45 Ethernet Loopback Tester

This RJ45 Ethernet loopback tester plug is designed for network diagnostics, Ethernet port testing, switch verification, and NIC troubleshooting. It allows compatible Ethernet devices to transmit and receive signals internally without requiring a second network device or hub.

RJ45 loopback adapters are commonly used by network administrators, IT technicians, field-service engineers, repair centers, and industrial maintenance personnel for verifying Ethernet port operation and troubleshooting network hardware.

Product Features

• RJ45 Ethernet loopback tester plug
• Supports common Gigabit Ethernet loopback testing applications
• Useful for switch, router, and NIC diagnostics
• Compact design for field-service and repair applications
• Compatible with standard RJ45 Ethernet ports
• Color: Red

Loopback Wiring

1-3  Orange
2-6  Orange/White
4-7  Blue
5-8  Blue/White

Testing Notes

• Response time varies by switch and router model
• Some Gigabit Ethernet implementations may require additional negotiation time
• USB-to-Ethernet adapters may not support loopback diagnostics
• Allow up to 30 seconds for certain switch and router test routines

Common Applications

• Ethernet port diagnostics
• Network switch troubleshooting
• NIC and adapter testing
• Industrial Ethernet maintenance
• Network installation verification
• Field-service repair diagnostics
• RJ45 loopback testing

Network Diagnostic Hardware Specialists

PCCables.com designed and built this RJ45 Ethernet loopback tester for practical network diagnostics, switch testing, NIC verification, Ethernet troubleshooting, and field-service maintenance applications commonly encountered by network technicians and IT professionals. Since 1996, PCCables.com has supplied hard-to-find diagnostic adapters, loopback plugs, and connectivity products for technicians, engineers, OEM repair, industrial maintenance, and network infrastructure support.
