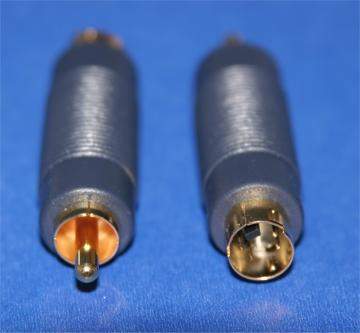

SVHS SVideo Adapter 4PIN MINI M to RCA-M

Part No #70720
StockIN STOCK
Price 1-9 $5.50
Price 10-99 $5.25
Price 100+ $5.00
Quantity
SVHS SVideo Adapter 4PIN MINI M to RCA-M
Combines the Luminance and Chrominance.
SVIDEO Mini Din4 Male to RCA Male Adapter.
SVideo-M to RCA-M Adapter with y/c Circuit.
4 PIN MINI-DIN MALE 					RCA
Name            Description
GND             Ground (Y)				Gold Sheild
GND             Ground (C)				Gold Shield
Y               Intensity (Luminance)			Gold Pin
C               Color (Chrominance)			Gold Pin

RCA Male Connector
Center		Combined Y/C
Sheild-Edge	Ground
