Serial Cable DB9F to 3.5mm DCS4

Part No87070
UPC Code820799870703

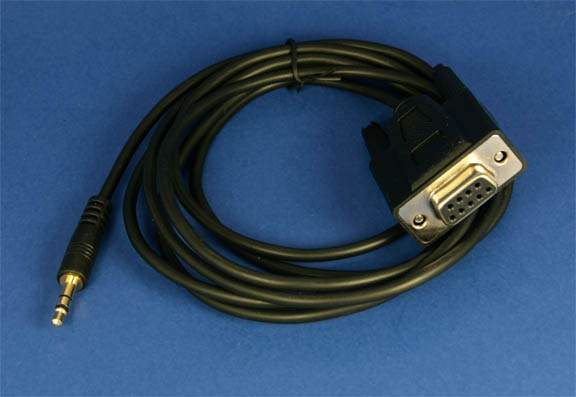

Serial Cable DB9F to 3.5mm DCS4

6 Foot DB9-Female to 3.5mm TRS Connector Male

Generic Serial Transfer Cable For Devices
Stereo 3.5 mm Jack.
to DB9-F Serial Port.
Primarily used to transfer Serial Data back and forth from Small devices.
Wiring Schematic
DB9           TRS Connector 3.5mm
Pin 1-6-7-8
Pin 2         Ring - Right
Pin 3         Tip  - Left
Pin 4
Pin 5         Sleeve - Shield - Ground
Pin 9
Shell         Sleeve - Shield - Ground
