Description

VGA PORT HD15F PORT To IDC16

Part No07129
Stock 350 - IN STOCK
Price 1-9 $5.50
Price 10-99 $4.95
Price 100+ $4.75
Quantity
UPC Code820799071292

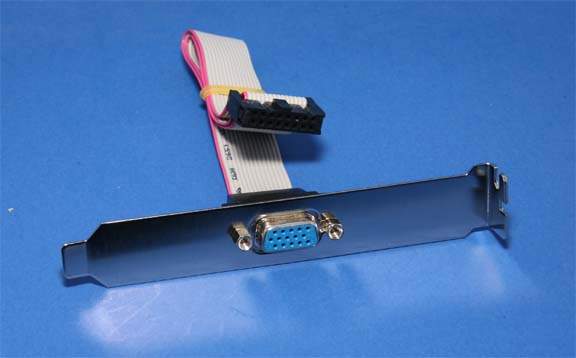

VGA PORT HD15F PORT To IDC16
VGA Port on Bracket
Used to connect VGA to Motherboards which have built in Video Support.
This has a 16 Pin IDC Connector.
Standard IDC Connector 2.54MM Pin Pitch Spacing.
Includes a 12inch Leader Cable to Main Board.
IDC 16 Pin Female
HD DB15 Connector
Pin Wiring
IDC16-Female HDDB15-Female 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 (Sometimes Blocked) 10 10 11 11 12 12 13 13 14 14 15 15 16 Open

Partial List of Compatible Devices

GENERIC

    VGA_PORT_HD15F_PORT_TO_IDC10_VIDEO
    VGA_PORT_HD15F_PORT_TO_IDC16_VIDEO
