How Far Can You Extend USB? Active vs Passive USB Extension Cables
Need to move a USB camera farther from your computer, bring a hard-to-reach USB port onto your desk, or connect equipment across a room? A USB extension cable can solve the problem, but the distance you can extend USB depends on the USB version and whether you use a passive or active extension cable.
Passive USB extension cables are simple and inexpensive for shorter runs. For longer distances, an active USB extension cable, also called a USB repeater cable, regenerates the data signal so it can travel farther without becoming unreliable.
PCCables.com carries both passive and active USB extension cables for USB 2.0 and USB 3.0 applications, including options designed for short desktop extensions and much longer installations.
What Is a Passive USB Extension Cable?
A passive USB extension cable contains no electronics. It simply extends the existing USB connection, typically with a USB-A male connector on one end and a USB-A female port on the other.
Passive extensions are useful when you only need a few extra feet. They can make a USB port easier to reach or extend devices such as keyboards, mice, flash drives, cameras, card readers, and other peripherals.

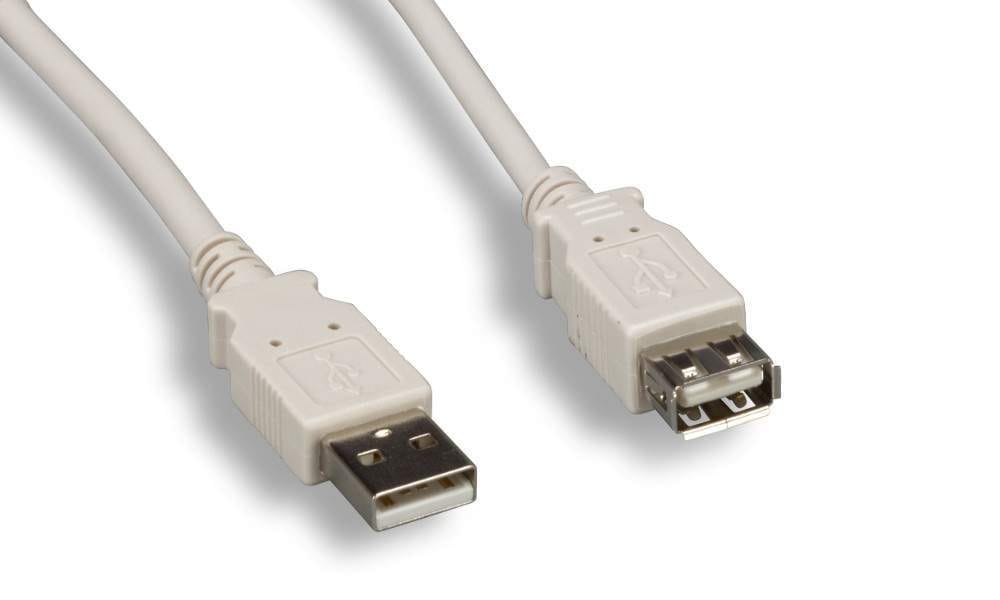

PCCables.com offers passive USB 2.0 extension cables in lengths ranging from short 1FT, 1.5FT, and 3FT extensions through 6FT, 10FT, and 15FT options in both black and white variations.

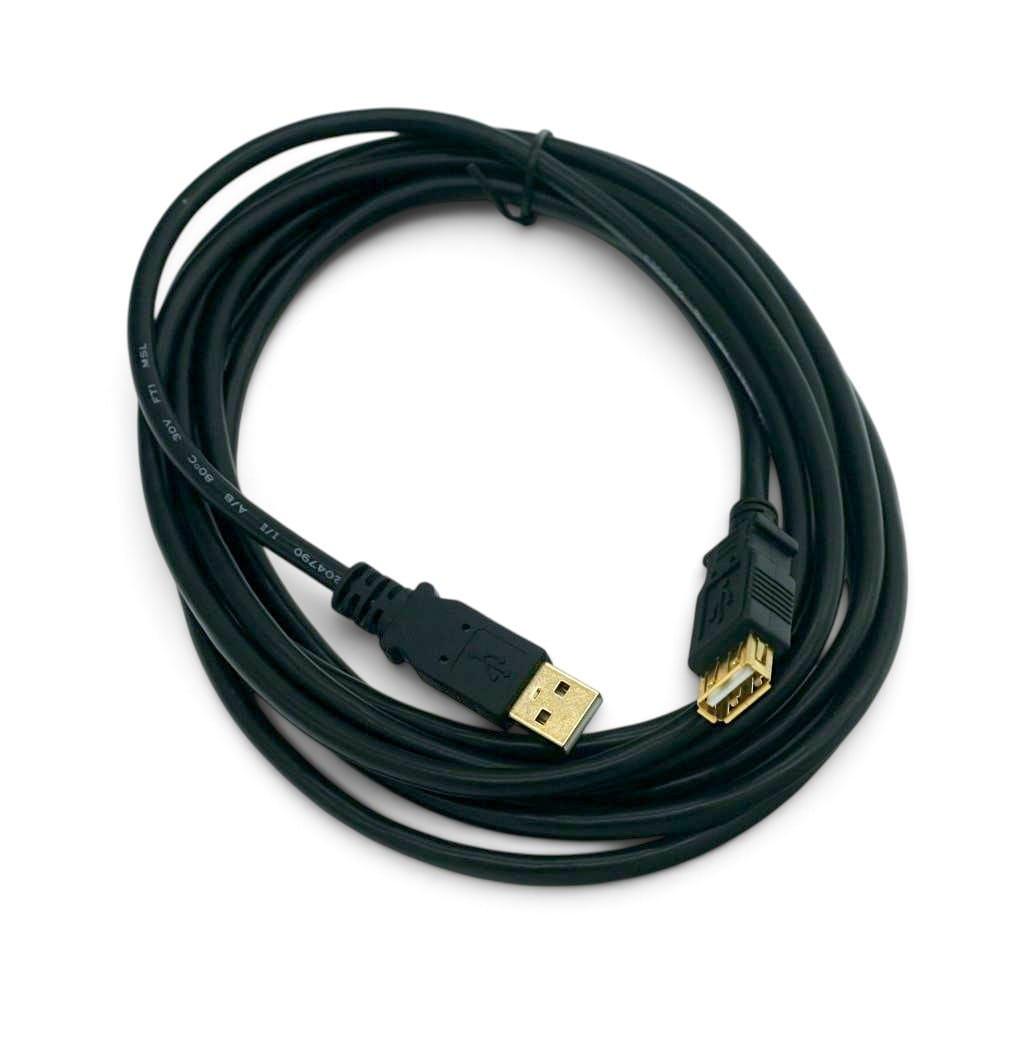

1FT USB-A Male to Female Extension and 10FT USB-A Male to Female Extension

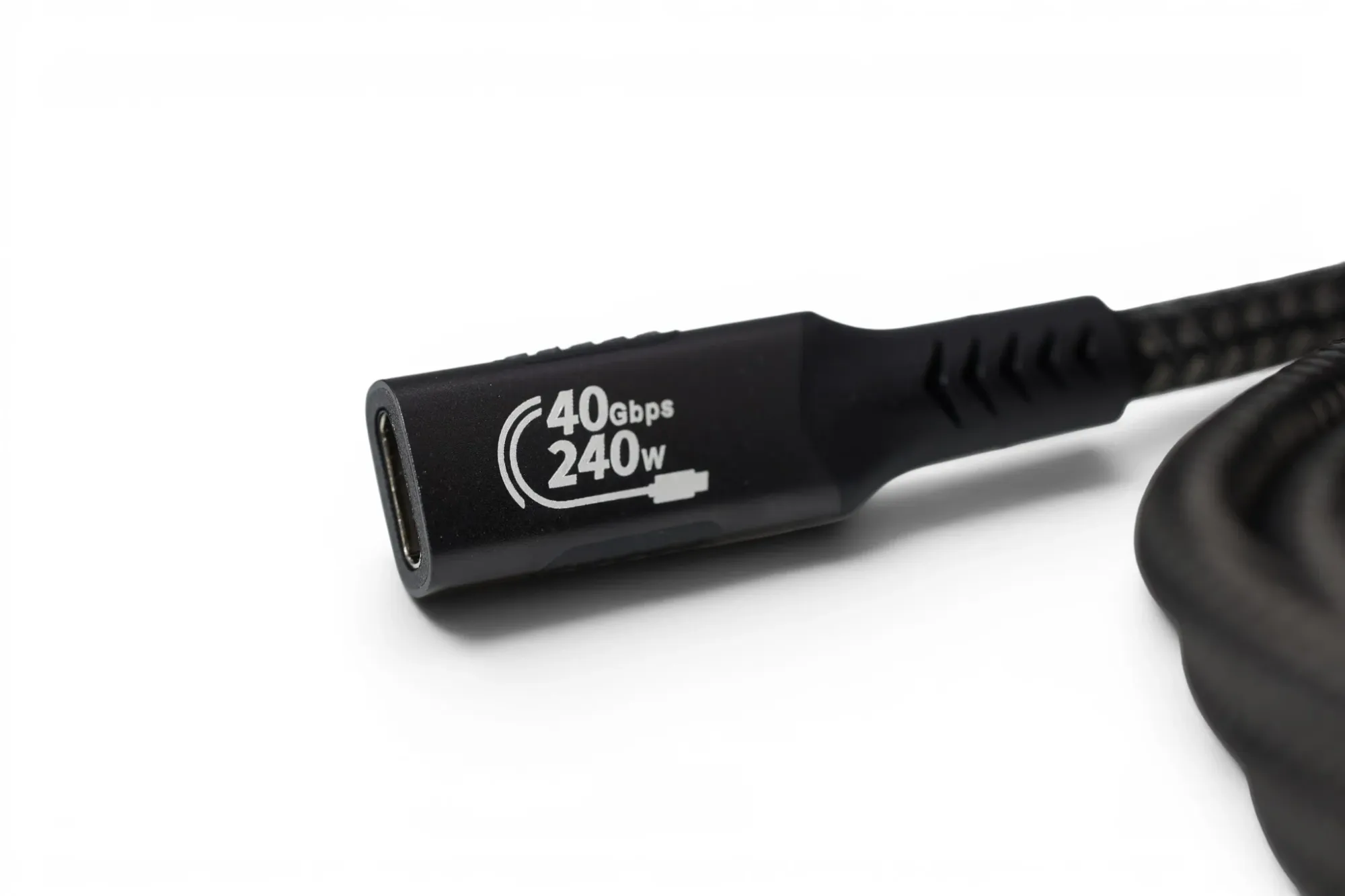

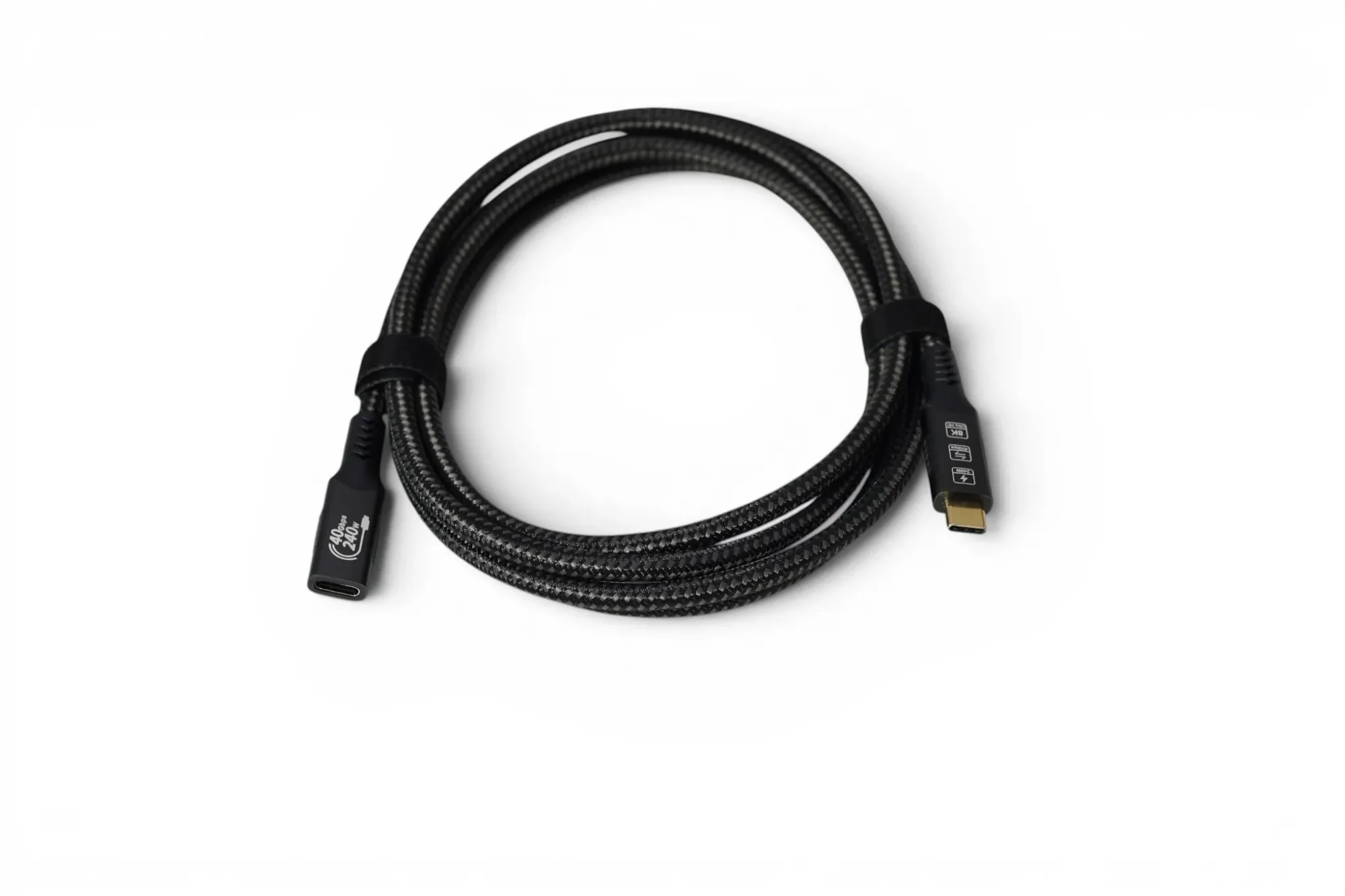

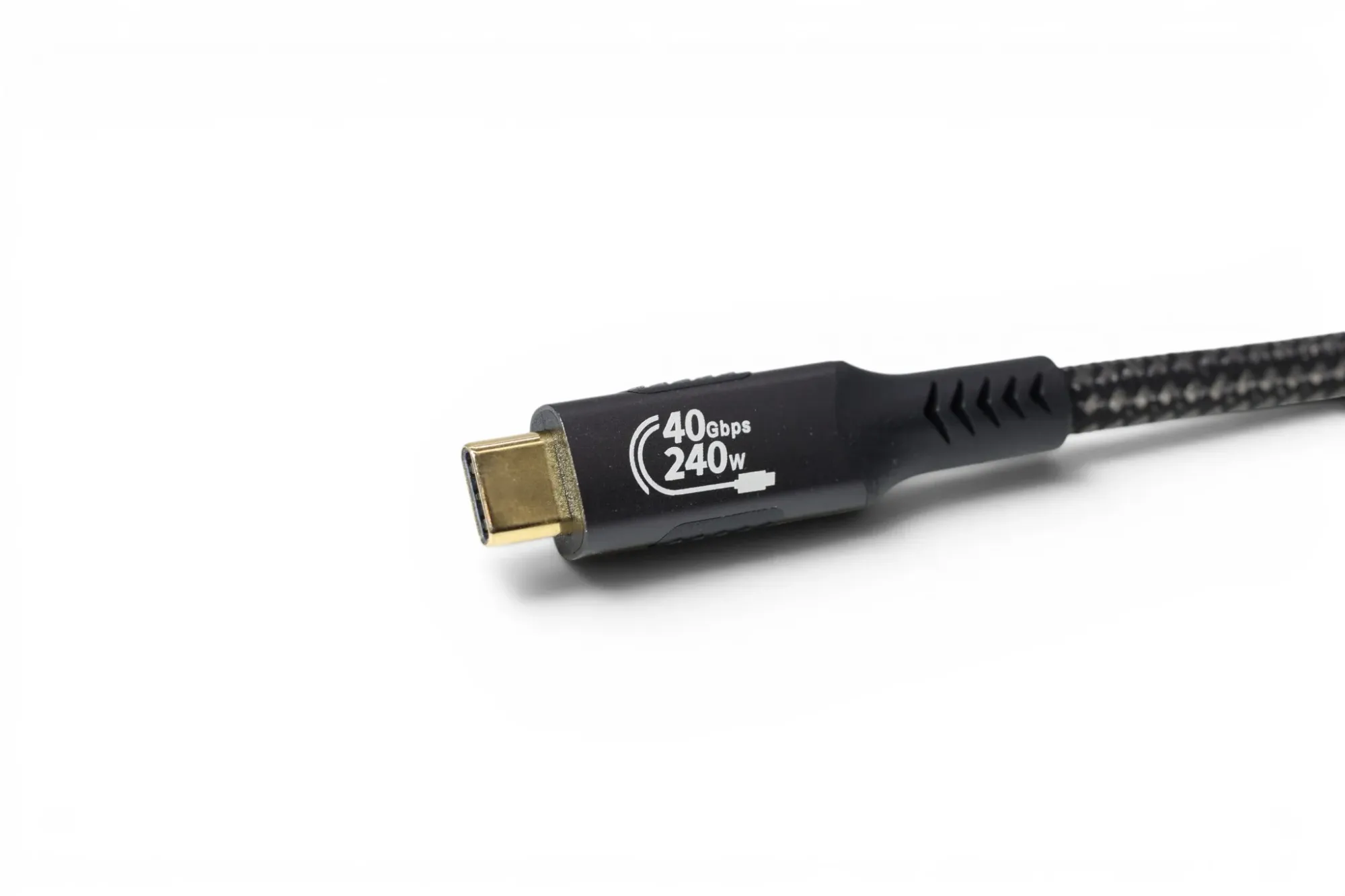

USB-C Extension Cables
USB-C connections need to be extended with USB-C male-to-female passive cables. PCCables.com offers USB-C extensions in 1.5FT, 3FT, and 6FT lengths, with models supporting up to 40 Gbps USB4/Thunderbolt 3 data transfer and 40W charging on compatible devices.
How Far Can You Extend USB with a Passive Cable?
There is no single distance that applies to every USB version.
For standard detachable USB 2.0 cables, the USB specification allows a maximum cable length of 5 meters, or about 16 feet. The limit exists because USB has strict timing requirements for communication between the computer and peripheral.
Higher-speed USB connections generally require shorter passive cables. USB-IF compliance guidance for SuperSpeed USB 3.0 cable assemblies specifies a maximum of 3 meters for standard connectors and 1 meter when a SuperSpeed Micro-USB plug is used.
In practical terms, the faster the USB connection and the longer the cable, the more important signal quality becomes.
What Is an Active USB Extension Cable?
If you only need to move a USB port a few feet, a passive extension is usually the simpler choice. If the distance becomes long enough that signal quality is a concern, an active repeater is the better solution. An active USB extension cable contains electronic circuitry that receives and regenerates the USB data signal.
Instead of simply adding more wire, the repeater electronics help maintain the electrical and timing requirements needed for USB communication. This makes active cables useful when the required distance exceeds what a normal passive connection can reliably support.
For example, PCCables.com's 16FT USB 2.0 Active Repeater Extension Cable uses USB-A male to USB-A female connectors to extend an existing USB connection. It can also be daisy-chained for installations up to 80 ft within its specified configuration.

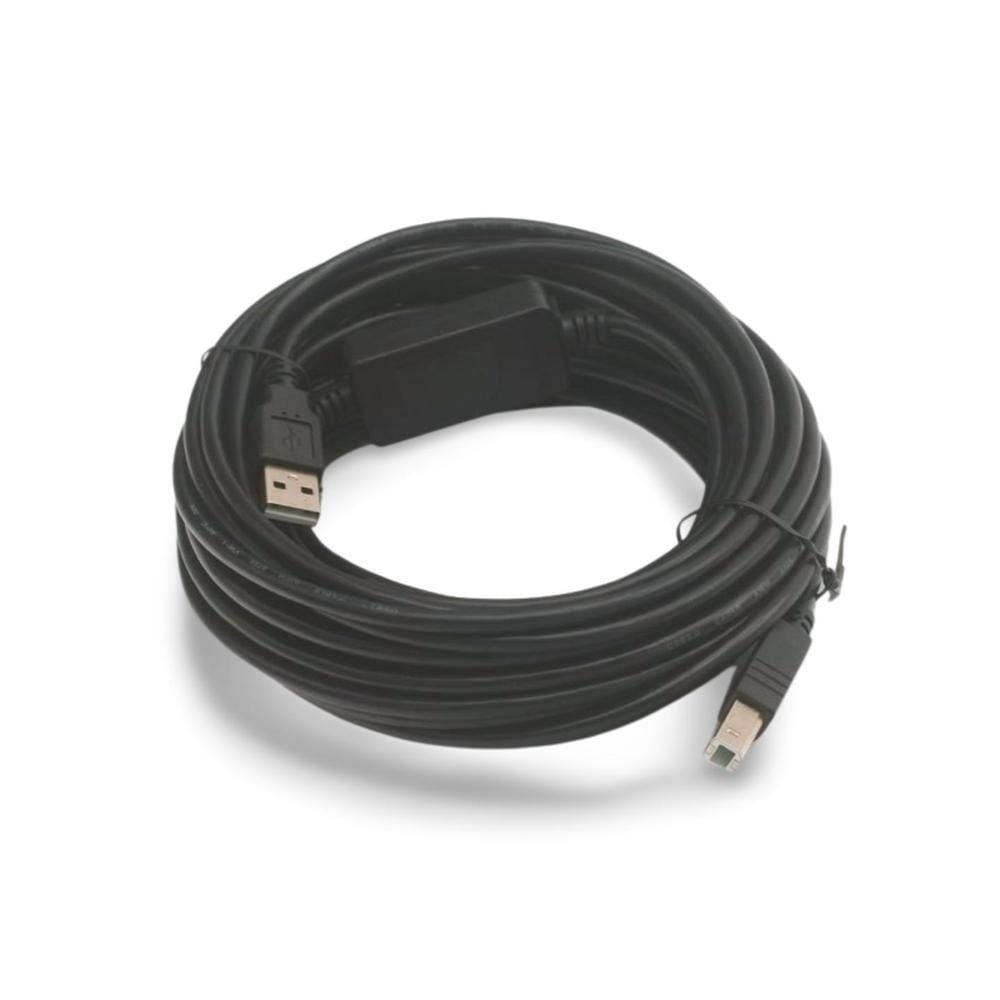

For devices such as printers and scanners, PCCables.com also offers a 30FT USB 2.0 Active USB-A to USB-B Cable, which provides a long direct connection from the computer to a USB-B device without requiring a separate extension cable.

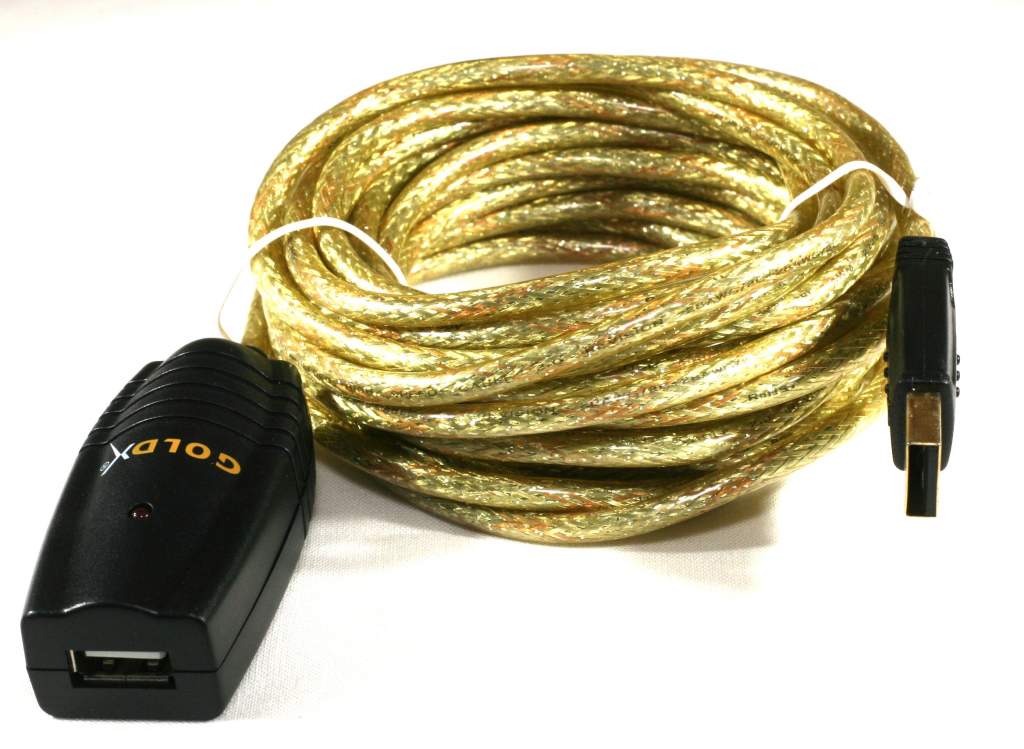

16FT USB 2.0 Active Repeater Extension Cable and 30FT USB 2.0 Active USB-A to USB-B Extension
Extending USB 3.0 Devices
USB 3.0 presents a greater challenge because higher data rates make signal quality more sensitive to cable length.

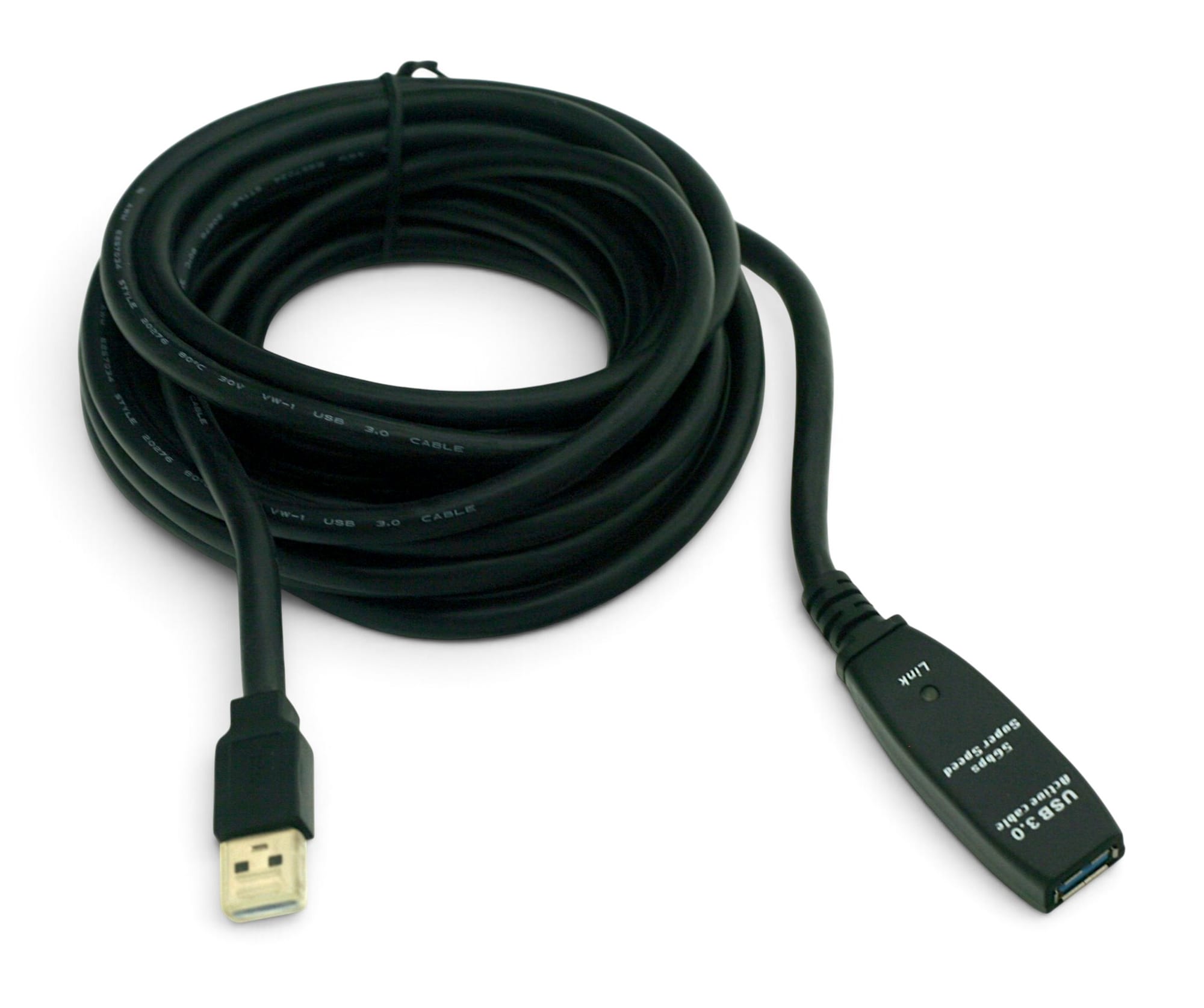

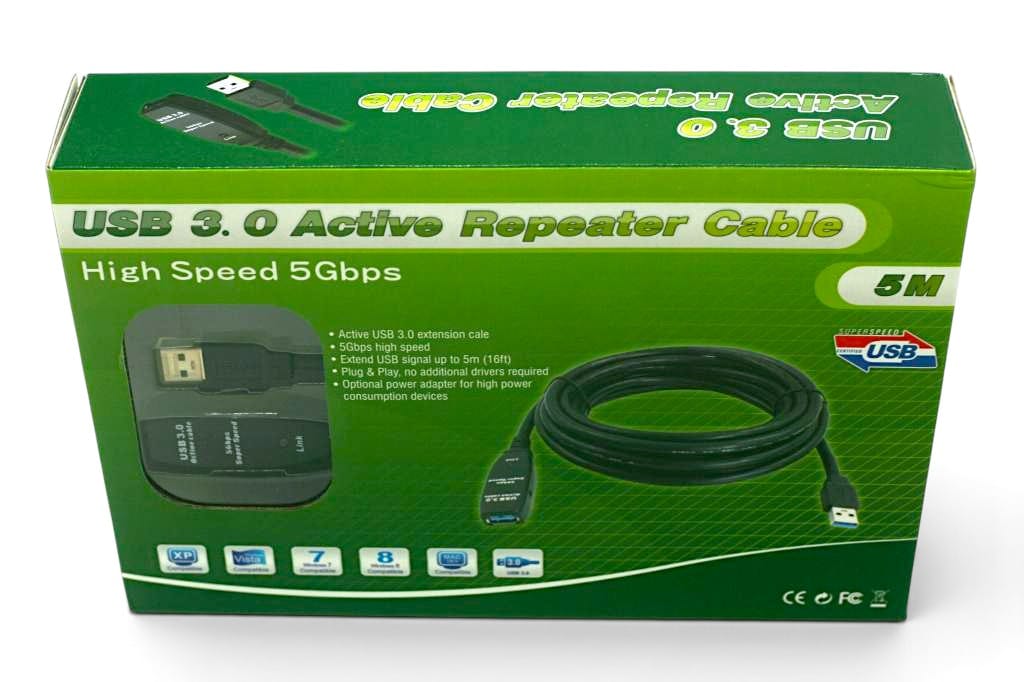

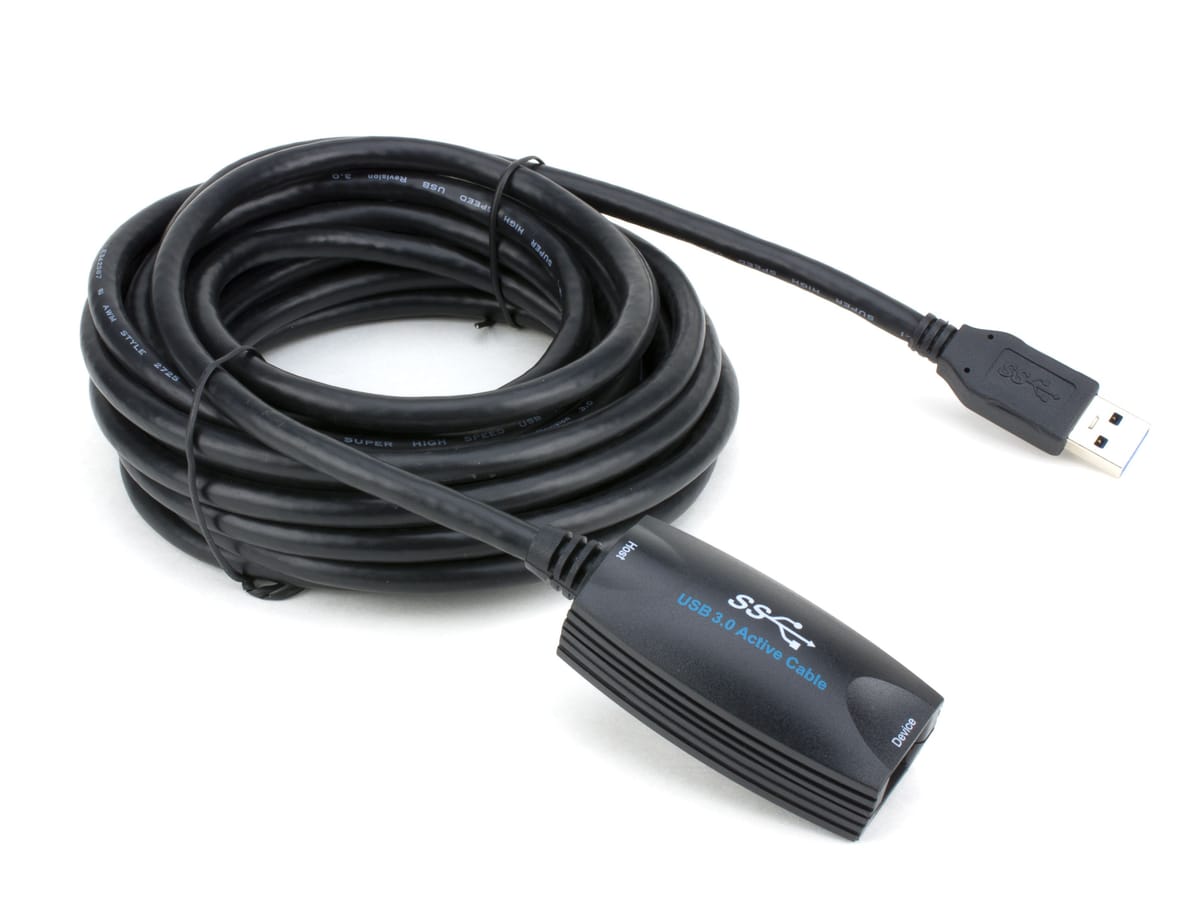

PCCables.com offers a 5-meter USB 3.0 Active Repeater Cable that supports data rates up to 5 Gbps. It can extend a USB 3.0 connection beyond the normal passive-cable distance and supports a total daisy-chain distance of up to 10 meters according to its specifications.
The cable also includes a power injection port for installations where additional power is required. This can matter because extending the data signal and providing adequate power to a USB device are separate issues.
What About USB 3.0 Passive Extension Cables?

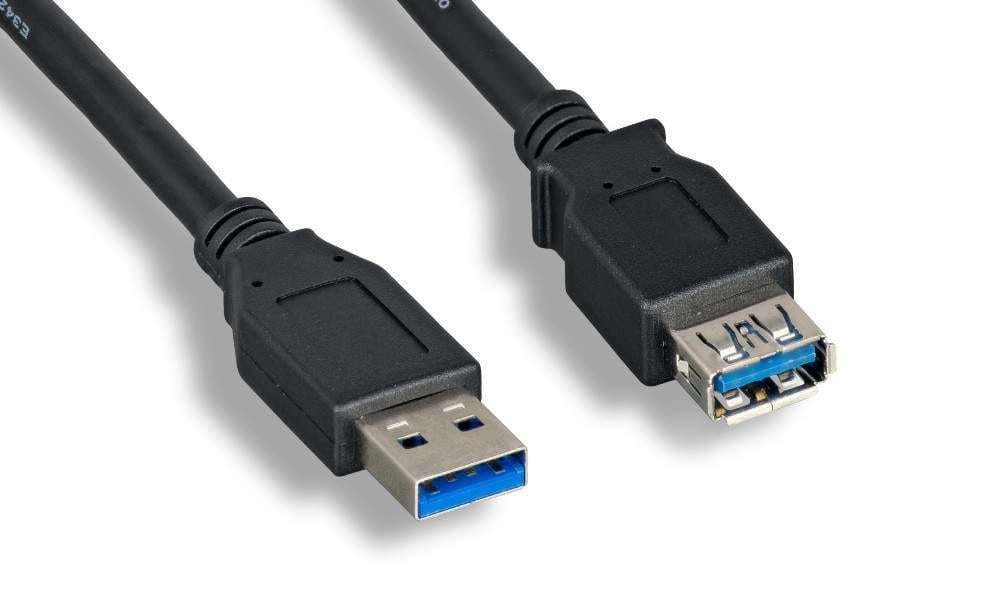

For shorter high-speed connections, USB 3.0 passive extension cables provide a simple way to add length without using repeater electronics. PCCables.com carries USB 3.0 Type-A male-to-female extensions in 1FT, 3FT, 6FT, 10FT, and 15FT lengths, making them useful for everything from bringing a hard-to-reach USB port onto a desk to extending external drives, cameras, hubs, and other USB 3.0 devices.
Can You Daisy-Chain USB Extension Cables?
Some active USB repeater cables can be daisy-chained, but the number of sections and total supported distance depend on the cable.
For example, PCCables.com's 16FT USB 2.0 active repeater is specified for daisy-chaining up to five levels for a maximum extension of 80FT. Its USB 3.0 5-meter active extension supports a total daisy-chain distance of up to 10 meters.
Passive cables should not simply be chained together indefinitely. Every additional length adds signal loss and voltage drop without regenerating the data.
Does USB Cable Length Affect Power?
Yes. Longer USB cables can reduce the amount of power that reaches a connected device. As cable length increases, electrical resistance can cause voltage drop, particularly with devices that draw more power.
Cable construction matters here. PCCables.com, for example, offers a 10FT USB 2.0 passive extension with heavier 20 AWG power conductors designed to reduce power loss across the cable.
For powered hard drives, cameras, wireless adapters, and other higher-draw devices, verify both the data-extension capability and the power requirements before choosing a long cable.
Which USB Extension Cable Do You Need?
For a short extension around a desk or workstation, a passive USB extension cable is usually sufficient. If you need to go farther, particularly across a room or between pieces of installed equipment, an active repeater cable can maintain the USB data signal over a longer distance.
The USB version matters as well. A USB 2.0 device does not require the same bandwidth as a USB 3.0 device, so make sure the extension cable supports the USB performance required by the equipment.
PCCables.com carries USB extension cables ranging from short passive USB 2.0 extensions to both USB 2.0 and USB 3.0 active repeater cables for longer installations.
Find USB Extension Cables at PCCables.com
Whether you need a few extra feet to bring a USB port within reach or an active repeater for equipment located across a room, the correct extension depends on distance, USB speed, and device power requirements.
PCCables.com offers passive USB extensions for shorter connections along with USB 2.0 and USB 3.0 active repeater cables for longer runs, including specialized long-distance options for installations where an ordinary USB cable is not enough.
